Description
Description :

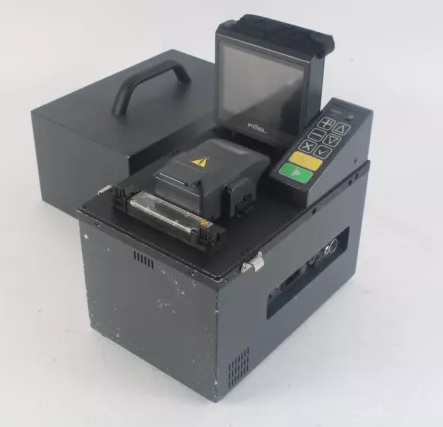

The S182K is specifically designed for splicing fiber with different mode field diameters. Much like the S182A, the function keys and LCD monitor are located behind the splicing area in order to provide you with uncluttered, efficient access to the splicing area.
The S182K is optimized to accommodate 3-to 5-mm cleave lengths and features a high precision re-arcing function that produces smaller splice points and low splice loss. The S182K does not touch the bare portion of the fiber and when used with FITEL’s High Strength Splicing Kits provides a high strength splice with an average tensile strength of 20N. The S182 can also be used for non-high strength applications.
FEATURES:
20-second splice and 90-second protection
Simultaneous X and Y view with separated view window for fiber and data on 5″ color LC
Automatic magnification control
High precision re-arcing function minimizes splice loss during dissimilar fiber splicing
Includes :
Fitel S182K SM MM High Strength Fusion Splicer (BC# 12949)
USFiber Optic USF-21 High Precision Fiber Cleaver w/ Hard Case
Clauss CFS-2 Fiber Optic Stripper
6 Month Fusion Splicer Care Kit FS6MC:
4oz Flip Jar Of 99% Alcohol
(50) Non-Lint Dry Wipes
(6) Fiber Optic Wipes w/ 99% Alcohol
2oz Pump Fast Evaporating Mirror Spray
(25) Camera Swabs
(25) V-Groove Swabs
Power Cord
RS232 PC Interface Cable
User Manual On CD-ROM
Hard Carrying Case (G)
