Fujikura 70R Fusion Splicers

$3,390

Compare
Categories: ,

Description

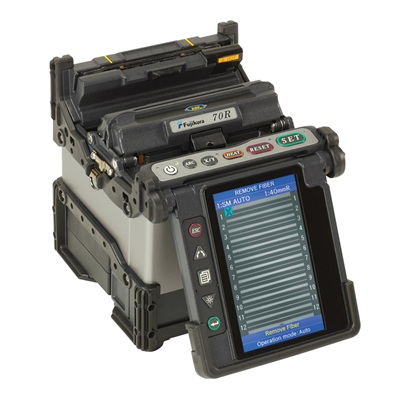

Fujikura 70R Fusion Splicer :
The Fujikura 70R is equipped with a precision, fixed v-groove for splicing single fibers or ribbon fiber up to 12 fibers. Incorporating the proven ruggedized features pioneered by Fujikura, the 70R has added automated and enhanced user control features to increase splicing efficiency. A user programmable, automated wind protector expedites the splicing process by automatically closing to initiate the splice process, and opening upon splice completion. A new auto-start “clamshell design” tube heater applies heat to both sides of the splice protection sleeve resulting in a 40-second shrink time for 12-fiber ribbon. The result is a total splice process time of approximately 55 seconds! Ruggedness and durability are greatly enhanced by a mirror-less optical system and “severe-impact resistant” monitor. Battery capacity is now 110 splices/shrinks. An innovative transit case doubles as a built-in or mobile workstation and makes splicing easier than ever before.

Features:
Automated and programmable wind protector
40-second automated tube heater
Fully ruggedized for shock, dust and moisture
Li-ion battery with 110 splices/shrinks per charge
On-board training and support videos
Internet software upgrades
Multi-function transit case with integrated workstation

Includes:
Fujikura 70R Ribbon Fiber Fusion Splicer (BC# 39498-L/T*)
Fujikura CT-30 High Precision Fiber Cleaver w/ Case (BC# 20895M-L/T*)
Clauss CFS-2 Fiber Stripper
6 Month Fusion Splicer Care Kit FS6MC:
4oz Flip Jar Of 99% Alcohol
(50) Non-Lint Dry Wipes
(6) Fiber Optic Wipes w/ 99% Alcohol
2oz Pump Fast Evaporating Mirror Spray
(25) Camera Swabs
(25) V-Groove Swabs
Fujikura HJS-02 Hot Jacket Stripper w/ DC Cord (BC# 20894M-L/T*)
FH-50-250 Fiber Holder Set
FH-50-12 Fiber Holder Set
Fujikura ADC-18 AC Adapter
Fujikura BTR-09 Battery Pack
DCC-18 Charge Cable
Sleeve Loader
70R Quick Reference Guide
Screwdriver
Power Cord
USB PC Interface Cable
User Manual On CD-ROM
Strap For Unit
Hard Carrying Case w/ Strap
